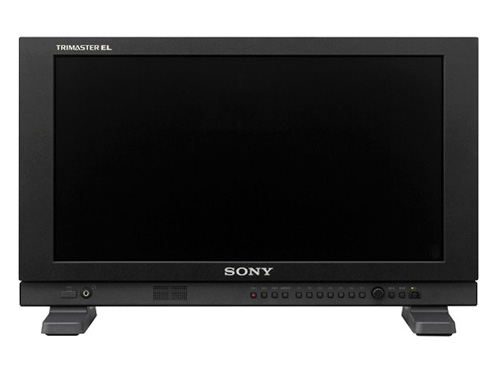

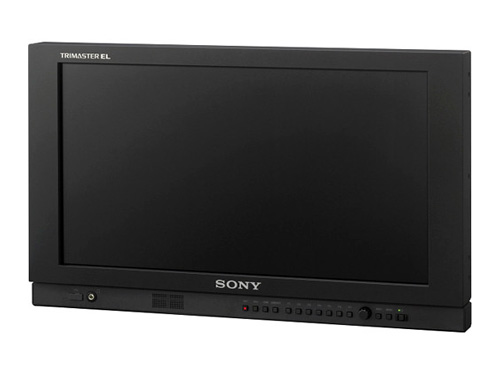

SONY PVM-A170 , Màn hình 17" công nghệ TRIMASTER EL, OLED Display Panel, 8 kênh âm thanh Level Meter Hiển thị
Bao gồm:
- 1 x AC Power Cord
- 1 x Giắc cắm AC
Tải catalog sản phẩmThe Sony PVMA170 17" Professional OLED Production Monitor is suitable for both field and studio use. It features a 16.5" diagonal OLED panel that has a native resolution of 1920 x 1080. Because of the OLED technology employed, each pixel can be switched completely off--unlike typical LCD displays--for a much closer approximation of true black. It can be connected to standard- and high-definition video sources via SDI or HDMI as well as analog standard-definition sources through composite.
The PVMA170 features two SDI inputs with loop-out that support 3G-SDI, HD-SDI, and SD-SDI signals at resolutions up to 1080p60. In addition, 24 fps frame rates are supported, including 23.98p, 23.98Psf, 24p native, and 24Psf. It features an HDMI input that supports 1080p60, 24p, 23.98p, standard-definition, and a number of computer resolutions. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. A front panel 3.5mm headphone jack allows users to monitor embedded audio locally and there is also a 1W built-in speaker.
Two Ethernet ports provide connectivity for serial and parallel remotes. Many third-party options can be used, as well as the Sony BKM-15R and BKM-16R. The monitor includes a removable desktop stand and is also compatible with standard VESA 100 x 100mm mounting hardware.
In addition to taking 100 to 240 VAC power, the PVMA170 features a 4-pin XLR DC input. This allows it to be field powered using a 12 VDC source such as a professional video battery system.
Display Features
- Accurate Black Reproduction
- Unlike many alternative display technologies, the OLED panel used in the PVMA170 features the ability to turn each pixel completely off so that no luminance signal is added to parts of the image recorded as black
- Super Top Emission Technology
- Designed to provide a wide color gamut with accurate color reproduction throughout the luminance range of the picture
- Faster Response Time than LCD Panels
- The gray-to-gray switching of the PVMA170 is faster than comparable LCD-based displays. This helps eliminate ghosting, motion blur (that is not naturally part of the scene), and other artifacts that reduce image quality
- Wide Angle of View
- Provides better off-axis viewing than many LCD-based alternatives, allowing users to accurately evaluate the image even if positioned off to the side. It features an 89° viewing angle in all directions while the contrast ratio remains above 10:1.
- Low-Latency Image Processing
- The PVMA170's I/P conversion system delivers automatically optimized signal processing according to the input signal format, with a latency of less than 0.5 fields. This helps ensure fast-moving images stay in sync with the audio
On-Screen Display (OSD)
- Waveform Monitor and Vector Scope
- Provides a built-in waveform and vector scope display so that users do not have to rely on dedicated equipment. Both displays can be magnified from 0 to 20% for detailed analysis, and within the waveform display the Line Select feature allows a specific portion of the image to be isolated. Level meters for two channels of embedded audio may also be displayed alongside the waveform or vector scope
- Focus Assist with Color Peaking
- An aperture level adjustment displays images with sharpened edges (peaking) to aid camera focus operation. In addition, the sharpened edges can be displayed in user-selectable colors (white, red, green, blue, and yellow) for increased visibility
- Audio Level Indicator
- Embedded audio levels can be displayed as stereo pairs or individual mono channels. Up to 16 channels can be selected at once
- Closed Captions
- OSD can display EIA 608 and EIA 708 captions
- Additional Displays
- Additional OSD features include: a tally overlay, video format overlay, and an on-screen menu system
General Features

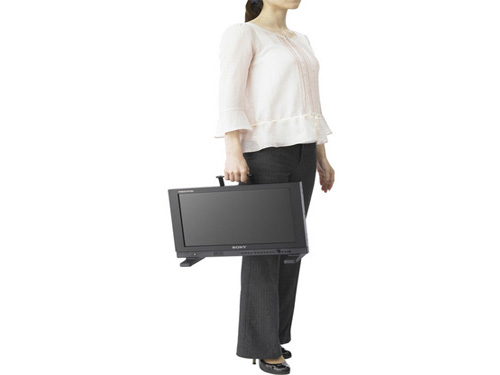

- Emphasis on Portability

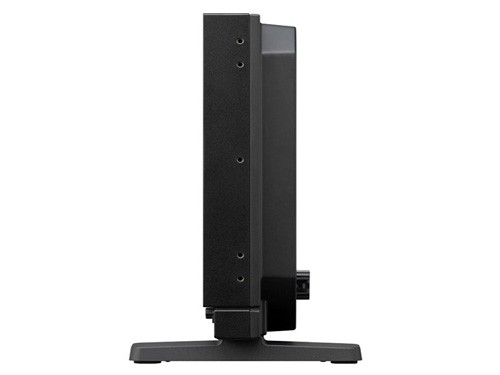

- The PVMA170 is 40% slimmer than the previous generation and weighs in at 9.3 lb. In addition, a handle is built into the back to simplify transport

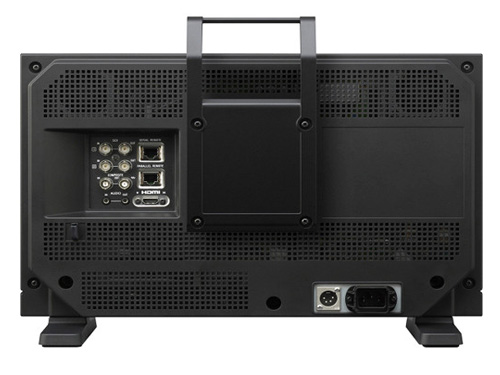

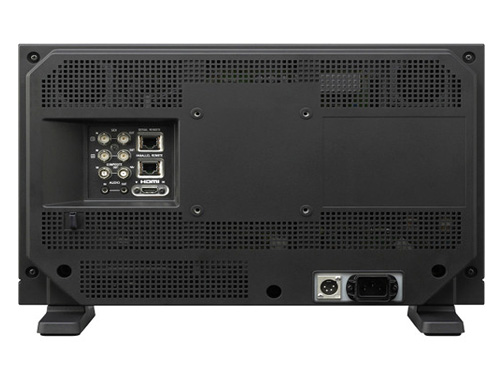

- Recessed Connector Panel
- The connectors do not protrude from the back of the monitor helping to ensure they will not be damaged during transport or if the monitor is laid flat
Phụ kiện đi kèm
- 1 x AC Power Cord
- 1 x Giắc cắm AC
Sản phẩm nên mua cùng
| Loại màn hình | 10-bit OLED |
| Kích thước màn hình | 16.5" |
| Vùng chiếu | 14.5 x 8.1" / 366 x 206 mm |
| Số điểm ảnh | 1920 x 1080 |
| Tỷ lệ khung hình | 16:9 - hỗ trợ 4:3 |
| Góc nhìn | 89° lên / 89° xuống / 89° trái / 89° phải ; tương phản > 10:1 |
| Ngõ vào | 2 x SDI on BNC female 1 x HDMI - hỗ trợ HDCP 1 x Composite on BNC female 1 x Analog audio on stereo 3.5 mm mini jack |
| Ngõ ra | 2 x SDI loop-out on BNC female 1 x Composite loop-out on BNC female 1 x Analog Audio on 3.5 mm mini jack 1 x Headphone on 3.5 mm mini jack 1 x 1.0 W speaker |
| Điều khiển từ xa | 1 x RJ-45 (cổng kết nối song song từ xa) 1 x RJ-45 (cổng kết nối, nối tiếp từ xa) Hỗ trợ: tùy chọn điều khiển từ xa BKM 15R hay BKM 16R |
| Tiêu chuẩn SDI | 3G-SDI (SMPTE 425M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M) |
| Hỗ trợ số điểm ảnh | SDI, HDMI, Composite: 720 x 480 at 60i; 720 x 576 at 50i SDI và HDMI: 1920 x 1080 at 60p, 60i, 24p, 23.98p; 1280 x 720 at 50 hoặc 60 Hz SDI Only: 24Psf, 23.98Psf HDMI Only: 1280 x 1024, 1280 x 768, 1360 x 768, 640 x 480 |
| Hỗ trợ định dạng | Composite: NTSC or PAL Kỹ thuật số RGB: 720p, 1080i, 1080p Kỹ thuật số Y Pb Pr: 720p, 1080i, 1080p Kỹ thuật số Y R-Y B-Y: 525 line or 625 line |
| Closed Caption Support | Displays EIA 608, and EIA 708 captions |
| Nhiệt độ hoạt động | 32 - 95°F / 0 đến 35°:C |
| Nhiệt độ bảo quản | -4 đến 140°F / -20 đến 60°C |
| Độ ẩm | 0 đến 90% |
| Áp suất dung sai | 700 hPa đến 1060 hPa |
| Điện năng yêu cầu | Nguồn AC Adapter: 100 đến 240 VAC (0.9 to 0.5 A) / 50 hoặc 60 Hz Nguồn DC: 12 đến 16 VDC -- via 4-pin XLR |
| Công suất tiêu thụ | Tối đa: 75 W Typical: 60 W |
| Tương thích VESA | 100 x 100 mm |
| Kích thước (WxHxD) | Có chân: 17.3 x 11.9 x 6.5" / 43.8 x 30.2 x 16.5 cm Không có chân: 17.3 x 10.8 x 2.6" / 43.8 x 27.3 x 6.6 cm |
| Trọng lượng | 9.3 lb / 4.2 kg |
