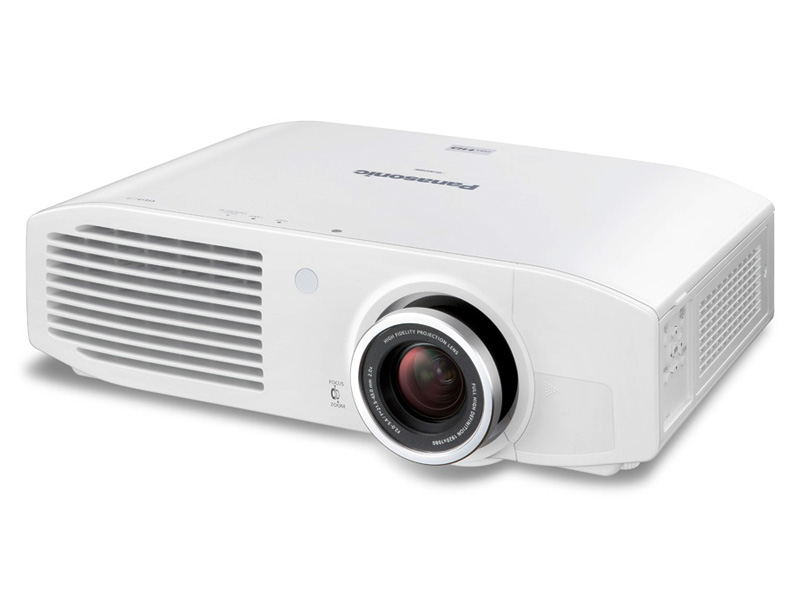

Panasonic PT-AR100EA, máy chiếu phim gia đình, Full HD, công nghệ 3LCD

The PT-AR100U Full HD Projector produces bright, sharp images by employing a new, high-power 280W red-rich lamp and optical unit that combine to generate 2800 lumens of brightness for comfortable viewing in various lighting conditions.

Together with 2800 lumens of brightness, Panasonic's Light Harmonizer 3 technology assists the versatile use of the projector by automatically adjusting the picture quality of the image to match the living room or theater room conditions. This is made possible by utilizing built-in ambient light and color sensors that adjust the white balance, gamma curve, and sharpness settings to maintain bright, crisp pictures that match the viewing environment.

The digital image processing circuit brings greater clarity and sharpness to details, by reproducing fine nuances that were lost due to image compression. After a two dimensional analysis of the video signal's frequency in each scene, the new circuit optimizes the sharpness of each image portion based on the extracted information.

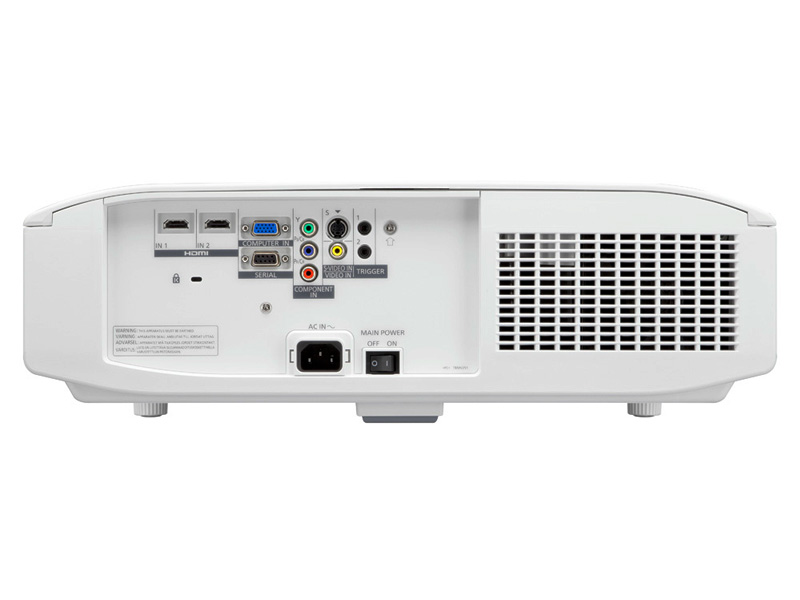

The PT-AR100 has two HDMI input terminals for digital transmission without image degradation. The HDMI input terminals also support Deep Color and the x.v.Color color space of the 1.3 standard. Deep Color provides 10-bit (over 1.07 billion) and 12-bit (over 68.7 billion) color depths for smooth gradation between colors, while x.v.Color compliance reproduces natural, lifelike images.

2x Optical Zoom Lens and Wide Lens Shift Range

The 2x optical zoom lens provides a wide throw range, and the image can be shifted ±65% vertically and ±26% horizontally. This outstanding level of setup flexibility lets you enjoy large-screen viewing in different-sized rooms. Position it on a table in front of you, suspend it from the ceiling, or place it on a bookshelf behind you

HDMI with x.v.Color and Deep Color

The PT-AR100 has two HDMI input terminals for digital transmission without image degradation. The HDMI input terminals also support Deep Color and the x.v.Color color space of the 1.3 standard. Deep Color provides 10-bit (over 1.07 billion) and 12-bit (over 68.7 billion) color depths for smooth gradation between colors, while x.v.Color compliance reproduces natural, lifelike images

Programmable 12V Trigger for Automated Theater Setup

Two 12V triggers are provided. Since the input and output can be set independently (menu selectable), they can link flexibly with powered screens, room lights and powered curtains

VIERA Link

The PT-AR100 supports VIERA Link. If your home theater system contains VIERA Link-ready equipment, projection can be started by using only the remote control unit of the PT-AR100, regardless of whether the source is a Blu-ray disc or a TV program stored on an HD recorder. This eliminates the need for hassling with several remote controls

Function Button for Instant Recall

A frequently used function can be assigned to the function button located on the remote for instant recall

Eco Management Functions

A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions, and reduce the lamp power when there is no signal input or the projector is in AV mute mode. You can easily set the eco management functions according to operating conditions by using the eco button on the remote control

Energy-Saving Intelligent Lamp Power Control

Advanced Panasonic digital circuitry intelligently determines the necessary power output of the lamp depending on the content being displayed by analyzing more than 3 billion different image patterns. This advanced analysis process reduces the main power consumption by as much as 10 percent when the dynamic iris pro function is operating, thus saving energy

Up to 3000 Hour Lamp Replacement Cycle and Simple Maintenance

Panasonic's proprietary lamp drive system helps maintain lamp performance, resulting in an up to 3000 hour lamp replacement cycle. For easy maintenance, you can replace the dust filter from the side and the lamp from the top of the projector. The filter and lamp are easily replaced even after the PT-AR100 is installed on the ceiling

Cinema Color Management Premium Enables Flexible Color Control

This color correction system enables free color control in two different modes. The point color correction mode lets you pick a point in the image and adjust that color without affecting the neighboring colors. The six color correction mode enables independent adjustment of red, green, blue, cyan, magenta and yellow

Advanced Gamma Adjustment Function

The gamma curve can be flexibly controlled, allowing precise calibration according to the signal source and environment. Brightness (Y), R, G and B can each be adjusted at any of nine points. Adjustment point positions can be shifted both horizontally and vertically to bring out the desired gradation level

Split Adjust Mode for Easy Picture Adjustment

You can freeze any scene you wish, and then make adjustments while easily comparing the original image and the adjusted image side-by-side

Waveform Monitor for Precise Calibration

When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced. With the PT-AR100, you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer

Motion Effect Adds Smoothness and Sharpness to Fast-Moving Scenes

This digital image processing circuit brings greater clarity and sharpness to details, even in fast-moving scenes. The resulting images have a more natural, lifelike expression

Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details

This digital image processing circuit brings greater clarity and sharpness to details, by reproducing fine nuances that were lost due to image compression. After a two dimensional analysis of the video signal's frequency in each scene, the new circuit optimizes the sharpness of each image portion based on the extracted information. The resulting images have a more natural, lifelike expression than those of previous image-processing methods. The detection of super-high-frequency image components also enables more faithful reproduction of highly detailed information, such as the film grain in movies. The effect can be adjusted in eight steps from 0 to +7

Pure Color Filter Pro for Rich, Vibrant Colors

The optical filter optimizes the light spectrum from the UHM projector lamp, helping to produce deeper blacks while improving purity levels in the three primary colors (red, green and blue). This advanced filter system improves color purity to cover a range that extends from the HDTV standard (Rec. 709 mode) to the color gamut used in digital cinema. This gives images the deep, rich coloring that distinguishes movie images

Light Harmonizer 3 Produces Quality Pictures in Various Lightings

Together with 2800 lumens of brightness, Panasonic's Light Harmonizer 3 technology assists the versatile use of the projector by automatically adjusting the picture quality of the image to match the living room or theater room conditions. This is made possible by utilizing built-in ambient light and color sensors that adjust the white balance, gamma curve, and sharpness settings to maintain bright, crisp pictures that match the viewing environment

2800 Lumens Brightness from Newly Developed 280W Red-Rich Lamp

The PT-AR100 projector produces bright, sharp images by employing a new, high-power 280W red-rich lamp and optical unit that combine to generate 2800 lumens of brightness for comfortable viewing in various lighting conditions

Dynamic Iris Pro Delivers High 50,000:1 Contrast Ratio for Deep Blacks

This intelligent iris system works by analyzing the brightness level of each image using a histogram, then adjusting the lamp power, iris and gamma curve accordingly to create the ideal image. The adjustments are made virtually frame by frame. This achieves an astounding contrast ratio of 50,000:1, providing a wide dynamic range with swift smoothness for added beauty in both dark and bright scenes

Sports Mode with Motion Effect for Sharp Action Scenes

In sports mode, together with the motion effect feature, the PT-AR100 detects and extenuates detail on moving objects, resulting in intensified action with clearer, more highlighted players

Game Mode for Stress-Free Playing

This mode improves signal processing for better response, allowing you to play games with minimal stress. It also reveals gradation in saturated areas to show details that are otherwise lost in very dark areas

Picture Modes for Different Occasions

The PT-AR100 features seven picture modes for various viewing situations, including modes that are ideal for sports, games and movies: normal, dynamic, game, sports, Rec. 709, cinema 1 and vivid cinema

Cinema 1 Mode Offers Hollywood Picture Quality

Movies can be enjoyed in Cinema 1 mode that has been tuned carefully to faithfully express the director's artistic intent. Panasonic has continued to work side by side with Hollywood experts to deliver this ideal image reproduction for viewing movies

Ecology-Conscious Design

No halogenated flame retardants are used in the cabinet
Non-coated cabinet for easy recycling
Lead-free glass for the lens
Standby power consumption of only 0.08W has been achieved
"Eco" button on the remote control
A sleep-timer that reduces wasteful power consumption
RoHS compliant

Other Features

Screen area memory
User-friendly ergonomic remote control
Built-in test pattern
On-screen input guidance
Auto input search
Quiet operation: 29 dB (lamp power: eco)
Normal/eco lamp power selection
16-bit (full 12-bit) gamma correction for natural gradation
Scene-adaptive MPEG noise reduction effectively blocks regular noise and minimizes mosquito noise
Scene-adaptive resizing LSI improves quality when resizing 480p images or those from other sources with resolution lower than the PT-AR100's native resolution
24p compatible
Progressive cinema scan (3/2 pulldown) and HD IP
Up to sixteen sets of picture adjustment settings can be stored in memory with custom names that make them easy to remember
User equalizing function lets you adjust the high, mid and low gamma levels
